Applications across industries
Crawler cranes
Tower cranes
Winches & hoists
Mining & excavators
Key features
- Built for heavy-duty, harsh working conditions
- Excellent bending-fatigue life on drums and sheaves
- Fully lubricated during manufacture to reduce internal wear and corrosion
- Steel core (IWRC) gives high strength and strong resistance to crushing
Twist direction & lay type
RHO – Right twist, ordinary layLHO – Left twist, ordinary layRHL – Right twist, Lang’s layLHL – Left twist, Lang’s lay
Surface coating
Hot-dip galvanized – EN 10264-2 Class B
Tensile strength
1960 N/mm²2160 N/mm²

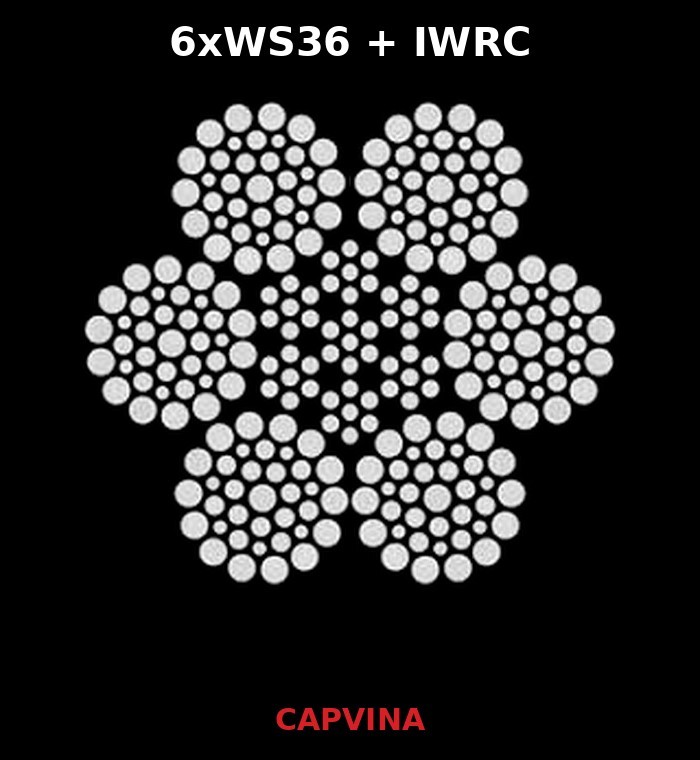

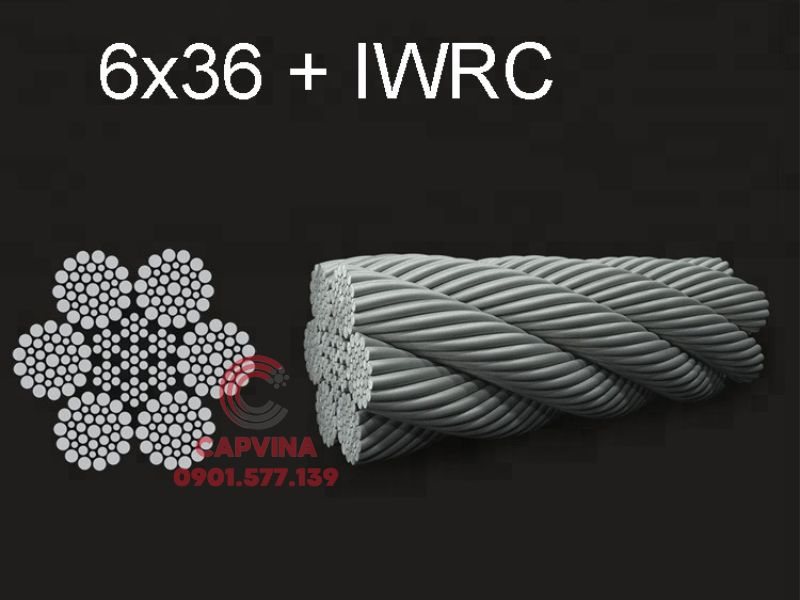

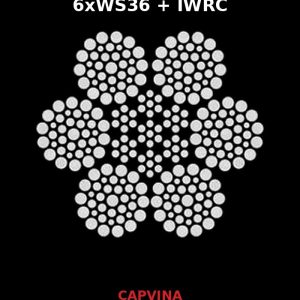

Construction 6xWS36 (14-7+7-7-1) + IWRC
CAPVINA Grade A – our quality promise
- Manufactured from EN 12385 standard up to JIS G 3525 standard
- Hot-dip galvanized wires, zinc coating to EN 10264-2 Class B
- CAPVINA Grade A tensile strength: from 1960 N/mm² to 2160 N/mm²
- CAPVINA core identification tag – certifies the CAPVINA brand and quality
- Delivered on reels with CAPVINA labels and packaging, mill certificate for every batch

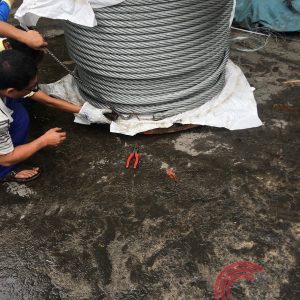

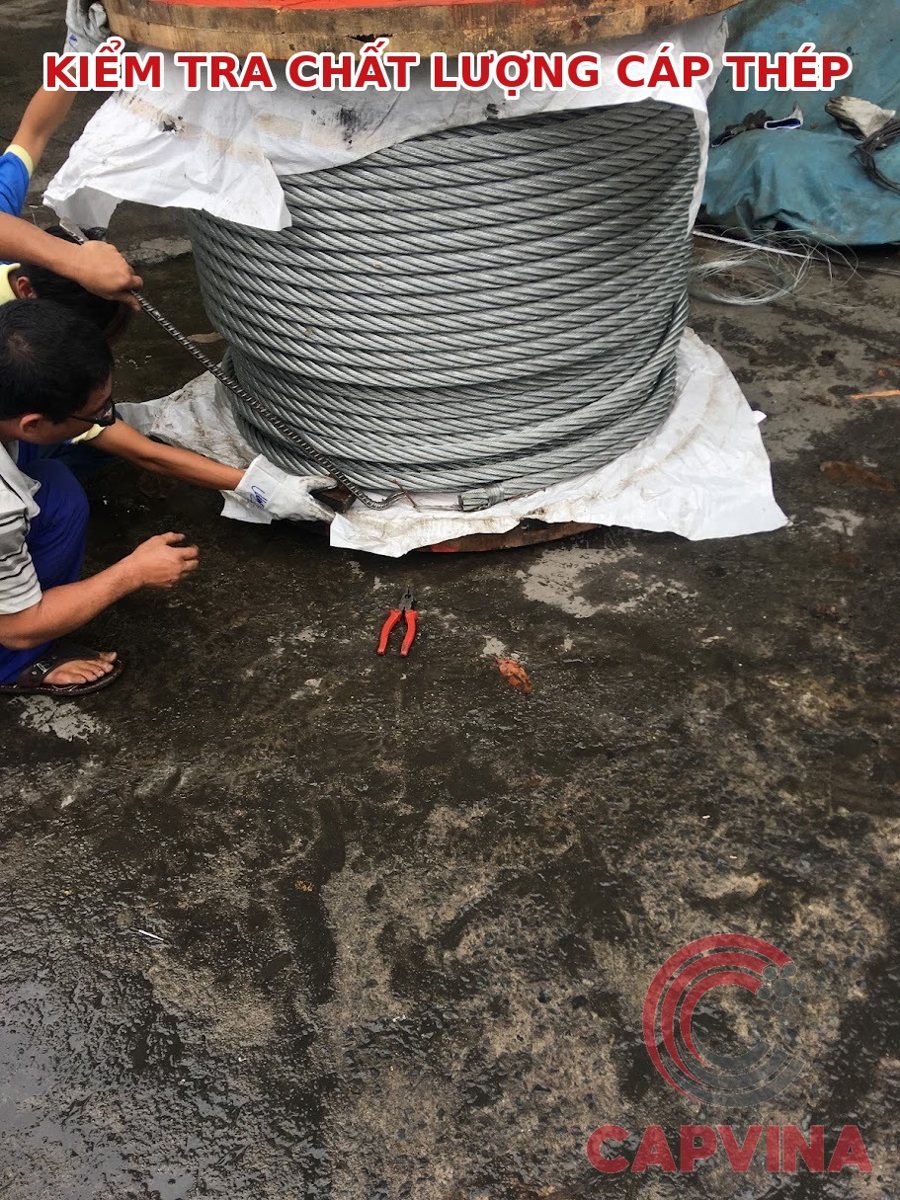

- Third-party inspection (Lloyd’s, DNV, Vinacontrol…) available on request

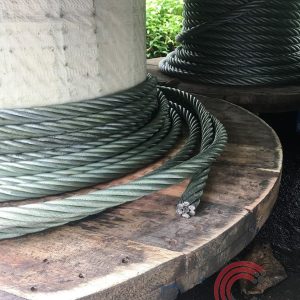

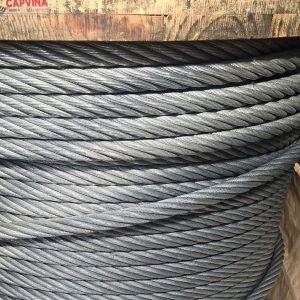

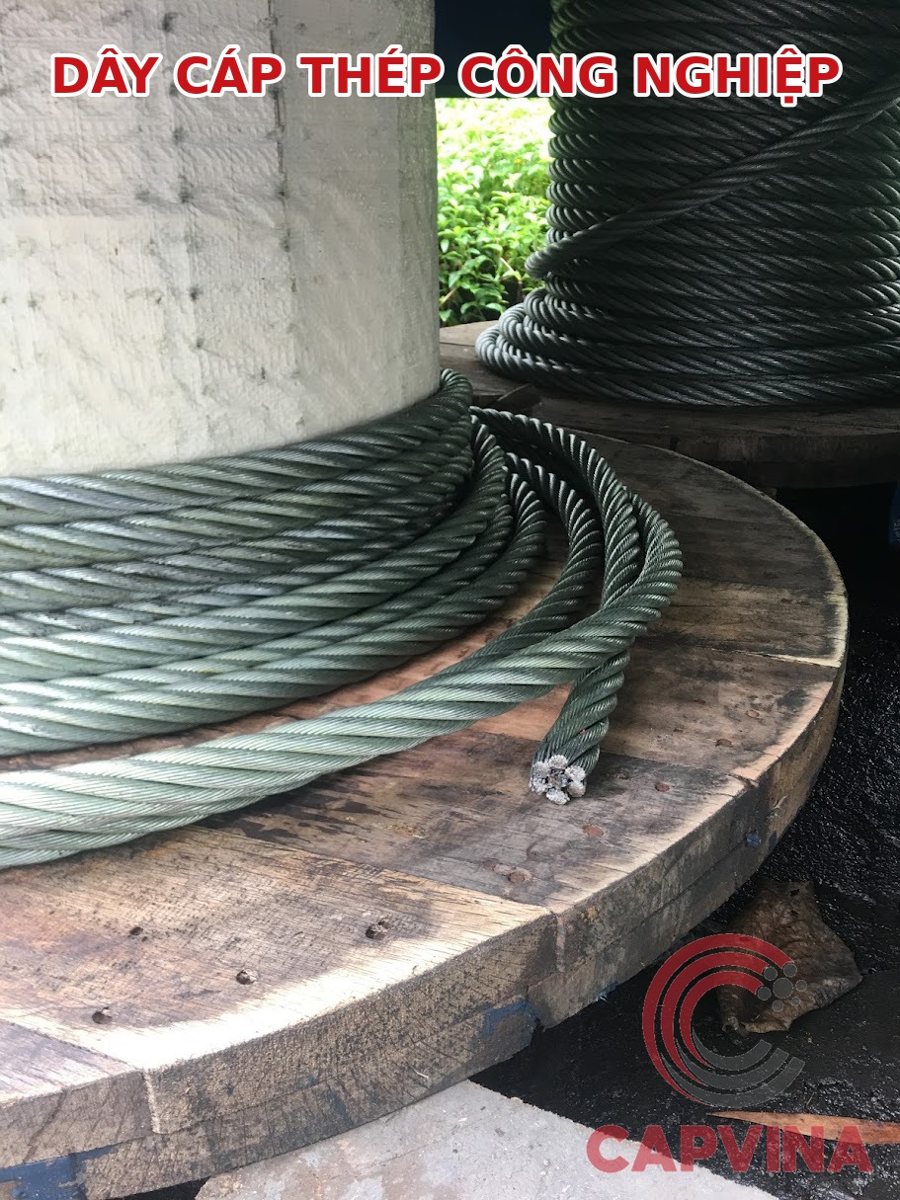

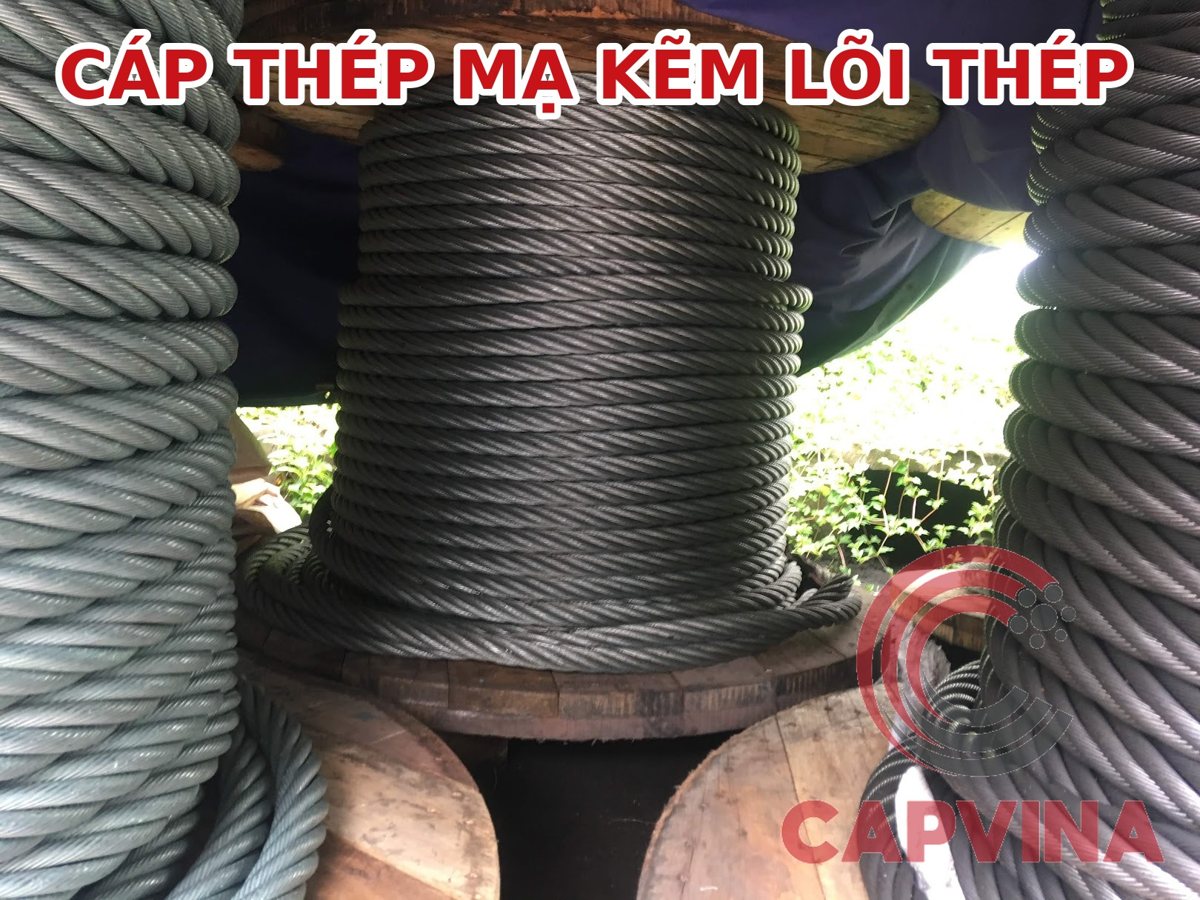

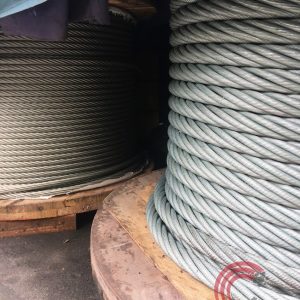

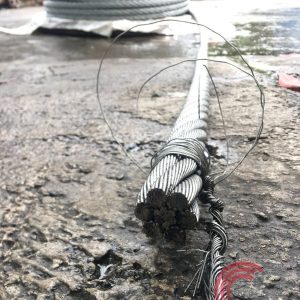

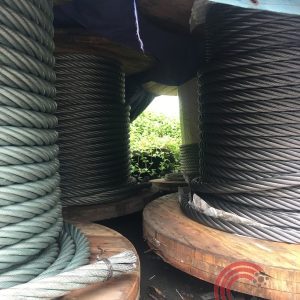

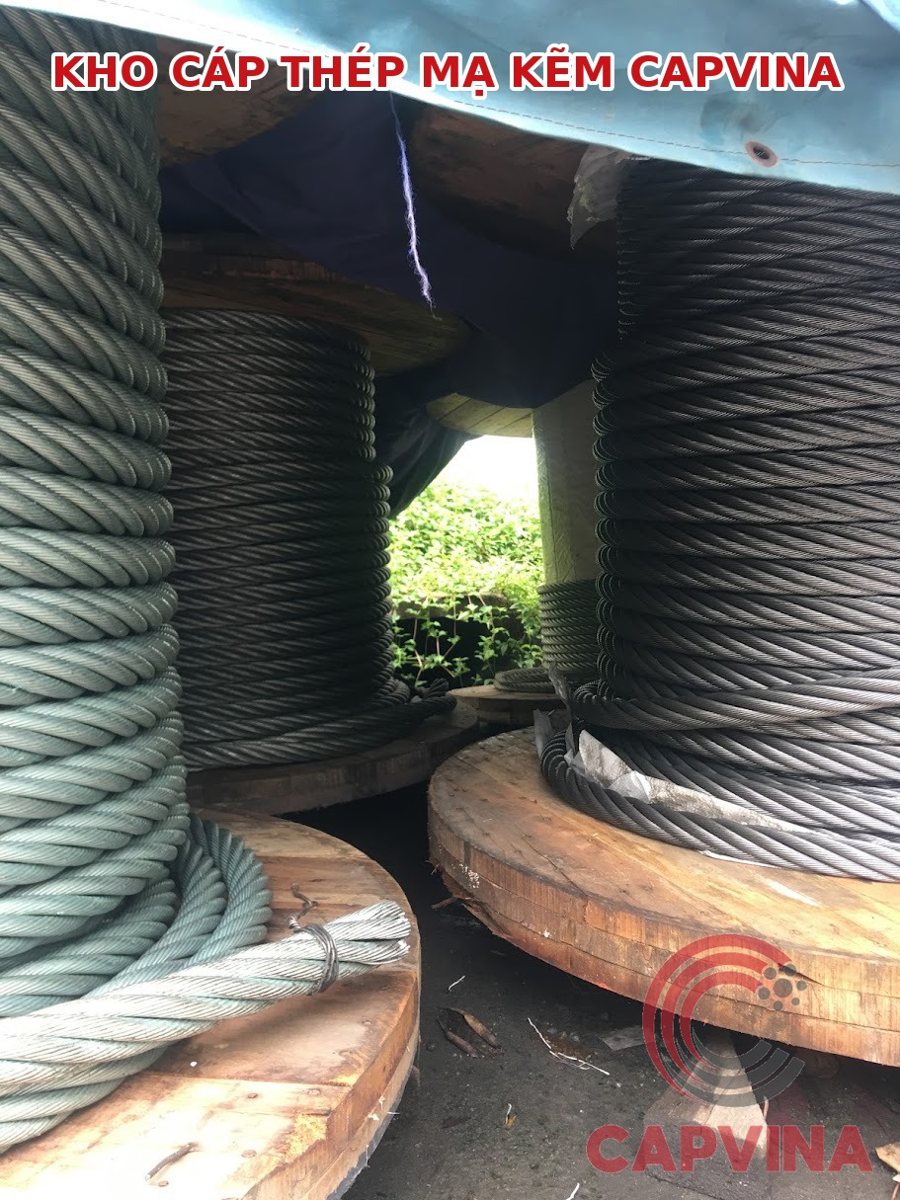

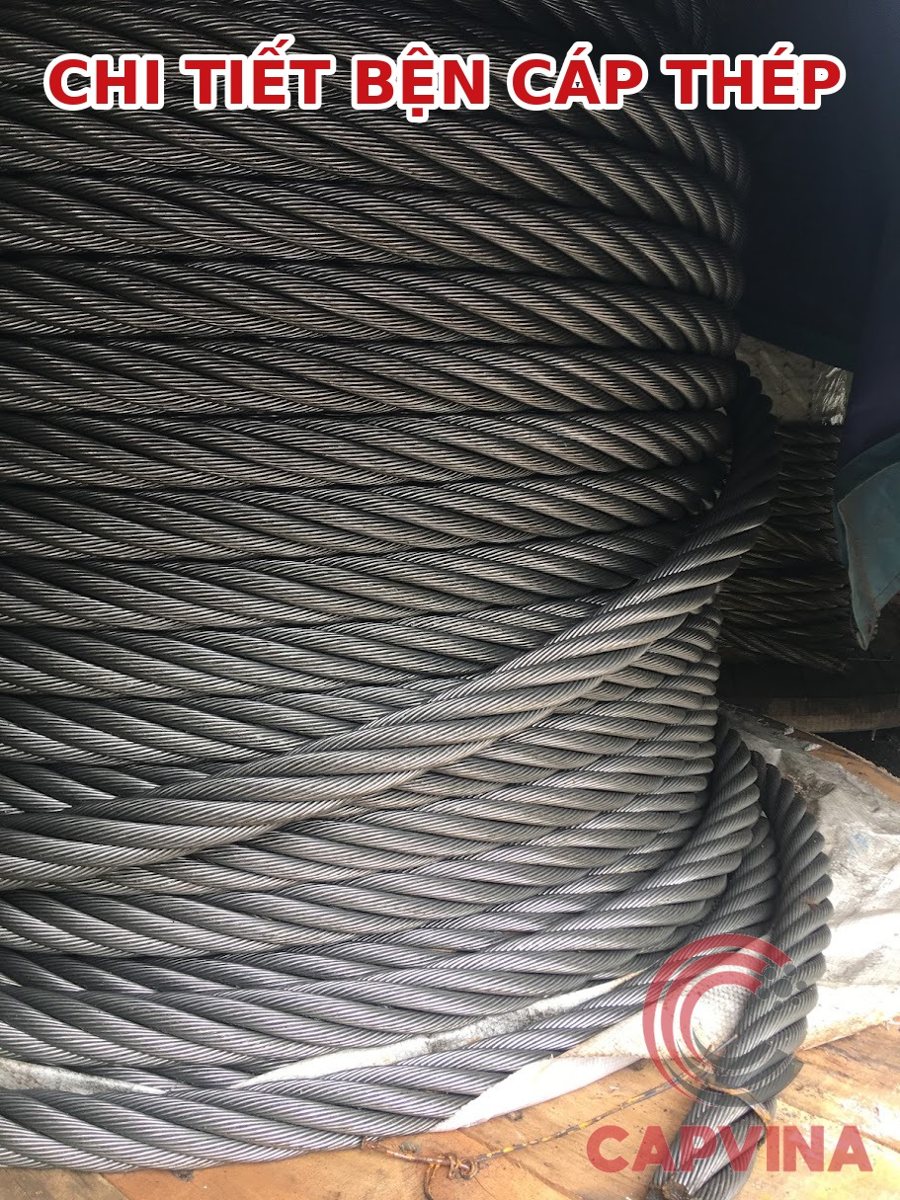

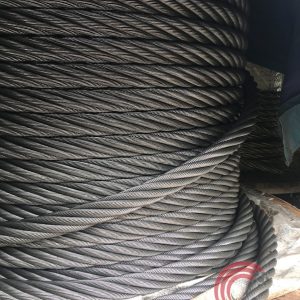

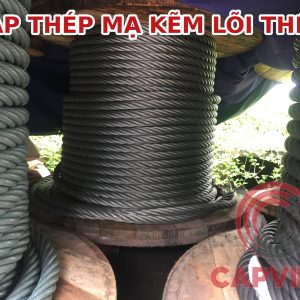

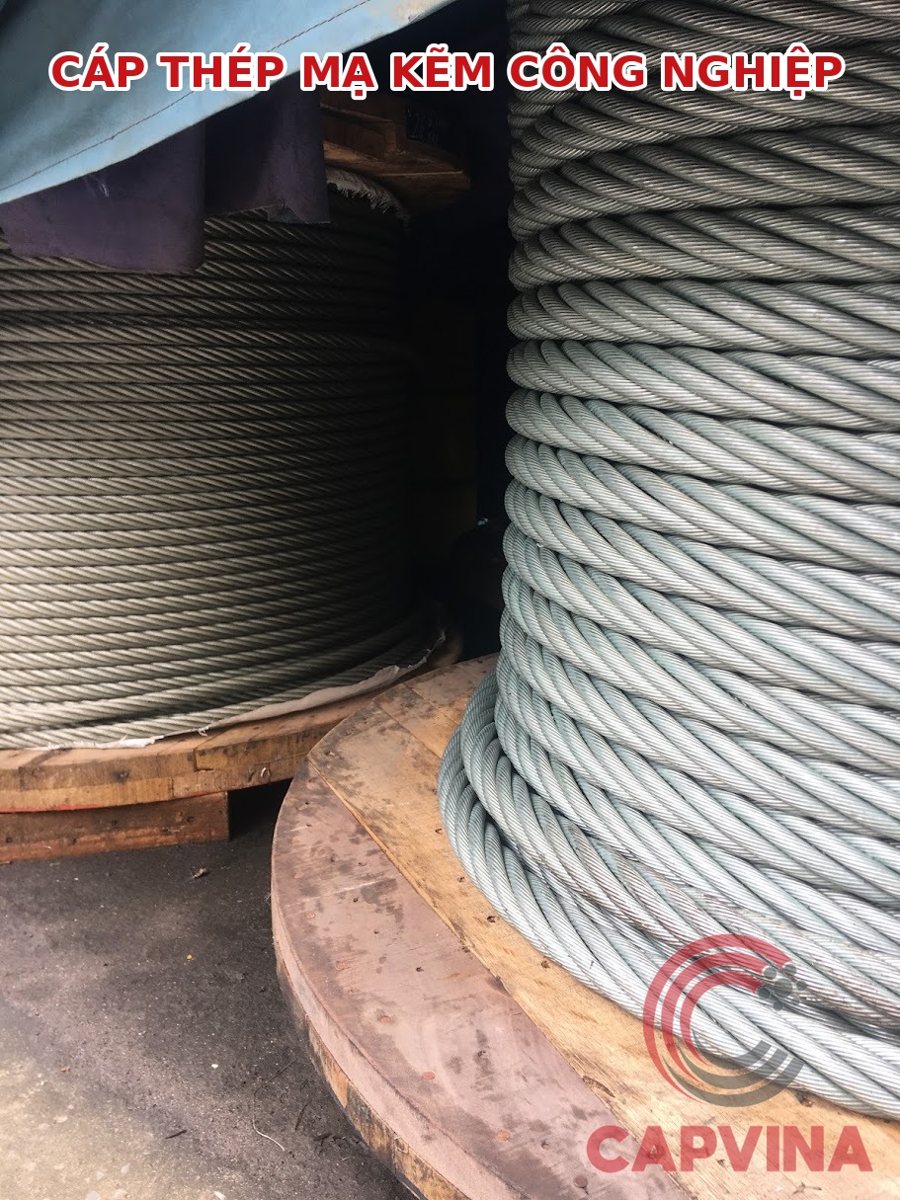

Real photos – CAPVINA Grade A wire rope
Technical data – 6xWS36 + IWRC
Minimum breaking force (MBF) in this table is the guaranteed minimum value published to EN 12385-4. In actual break tests, CAPVINA Grade A wire rope usually reaches 3–5% higher than these values.
Every CAPVINA wire rope delivered comes with Certificate of Origin (CO), Certificate of Quality (CQ), product conformity declaration and inspection certificate by Lloyd’s Register or DNV. Vietnam Register (VR) inspection is also available on request.
| 6xWS36 + IWRC – CAPVINA Grade A | Minimum breaking force (kN) | Minimum breaking force (tonnes) | |||
|---|---|---|---|---|---|
| Diameter (mm) | Weight (kg/100 m) | 1960 N/mm² | 2160 N/mm² | 1960 N/mm² | 2160 N/mm² |
| 8 | 26.4 | 45 | 49 | 4.59 | 5.00 |
| 9 | 33.9 | 57 | 62 | 5.81 | 6.32 |
| 10 | 41.3 | 70 | 77 | 7.14 | 7.85 |
| 11 | 50.3 | 84 | 93 | 8.57 | 9.48 |
| 12 | 59.3 | 100 | 111 | 10.20 | 11.32 |
| 13 | 69.8 | 118 | 130 | 12.03 | 13.26 |
| 14 | 81 | 137 | 151 | 13.97 | 15.40 |
| 16 | 106 | 179 | 197 | 18.25 | 20.09 |
| 18 | 136 | 226 | 249 | 23.05 | 25.39 |
| 19 | 150 | 252 | 278 | 25.70 | 28.35 |
| 20 | 163 | 279 | 308 | 28.45 | 31.41 |
| 22 | 202 | 338 | 372 | 34.47 | 37.93 |
| 24 | 240 | 402 | 443 | 40.99 | 45.17 |
| 26 | 280 | 472 | 520 | 48.13 | 53.03 |
| 28 | 328 | 547 | 603 | 55.78 | 61.49 |
| 30 | 375 | 628 | 692 | 64.04 | 70.56 |
| 32 | 425 | 715 | 787 | 72.91 | 80.25 |
| 34 | 480 | 807 | 889 | 82.29 | 90.65 |
| 36 | 536 | 904 | 997 | 92.18 | 101.67 |
| 38 | 598 | 1008 | 1110 | 102.79 | 113.19 |
| 40 | 666 | 1116 | 1230 | 113.80 | 125.43 |
| 44 | 807 | 1351 | 1489 | 137.76 | 151.84 |
| 46 | 889 | 1476 | 1627 | 150.51 | 165.91 |
| 48 | 962 | 1608 | 1772 | 163.97 | 180.69 |
| 52 | 1127 | 1887 | 2079 | 192.42 | 212.00 |
| 56 | 1308 | 2188 | 2411 | 223.11 | 245.85 |
| 60 | 1496 | 2512 | 2768 | 256.15 | 282.26 |
| 64 | 1701 | 2700 | 2975 | 275.32 | 303.37 |
| 68 | 1922 | 3048 | 3359 | 310.81 | 342.52 |
| 70 | 2026 | 3230 | 3559 | 329.37 | 362.92 |
| 72 | 2141 | 3417 | 3766 | 348.44 | 384.03 |
| 76 | 2403 | 3807 | 4196 | 388.21 | 427.87 |
Minimum breaking force according to EN 12385-4. Conversion: 1 tonne-force = 9.80665 kN (tonnes = kN ÷ 9.80665). Weight is nominal for lubricated rope. CAPVINA Grade A is supplied in 1960 and 2160 N/mm² tensile strength only.
