CAPVINA jaw and jaw turnbuckle (tăng đơ 2 đầu ma ní) is a forged, hot-dip galvanized turnbuckle made to ASTM F1145, with a working load limit from 0.5 to 34 tonnes and a 5:1 safety factor. As a turnbuckle supplier in Vietnam, CAPVINA keeps 11 sizes from 1/2″ to 2-3/4″ in stock and gives every piece a 6-month quality warranty.
Applications across industries

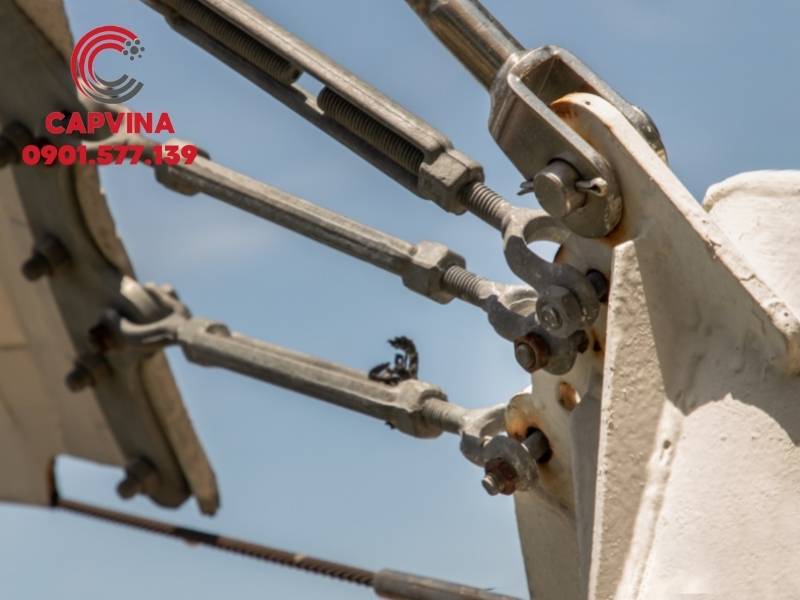

Marine rigging and lashing

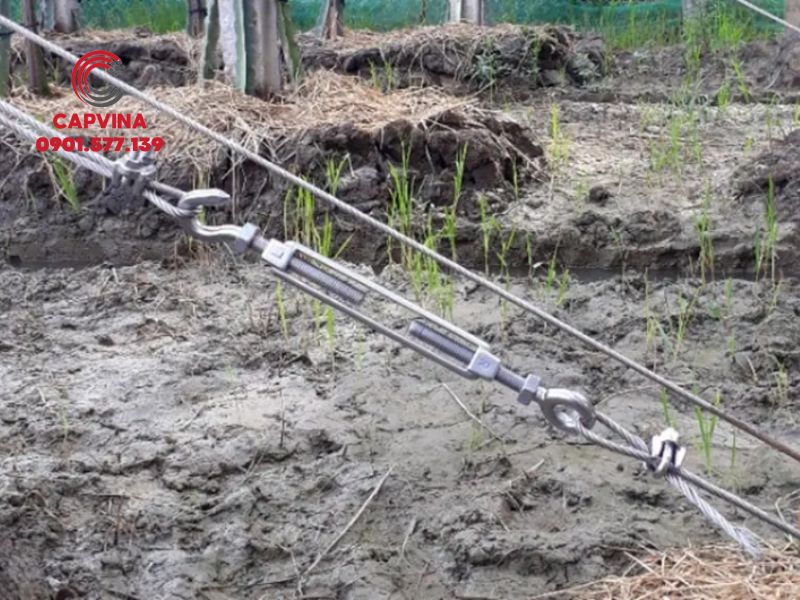

Riverbank and embankment anchoring

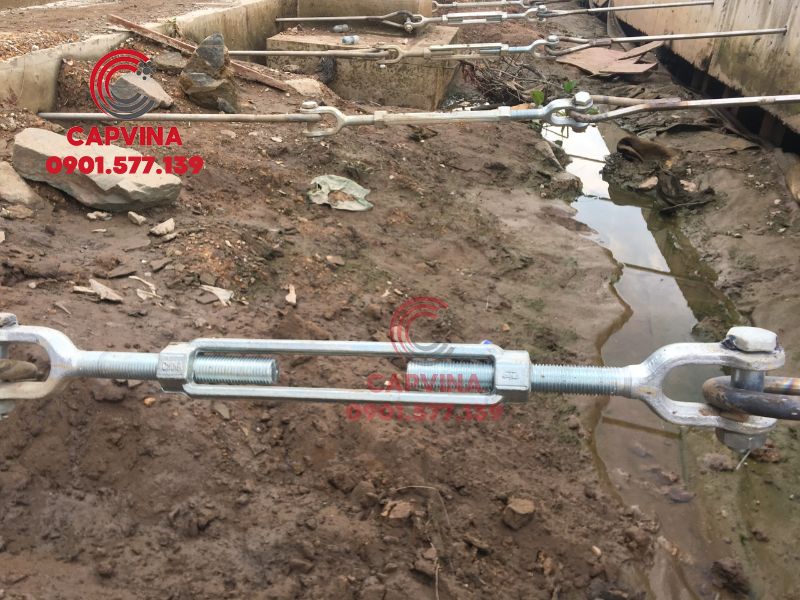

Guy wires for BTS / telecom towers

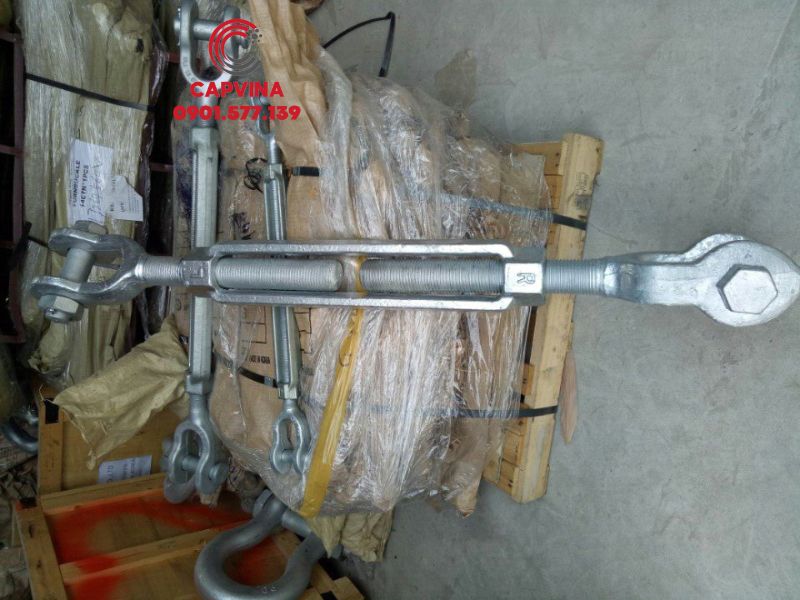

Structural bracing and heavy stays
Key features

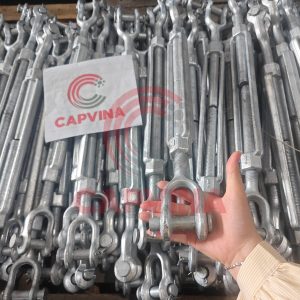

- Forged jaw-type ends on both sides, each with bolt, nut and cotter pin – connect directly to wire rope eyes, thimbles, chain and anchor plates
- Open forged body with right-hand and left-hand threads – fast, visible tension adjustment

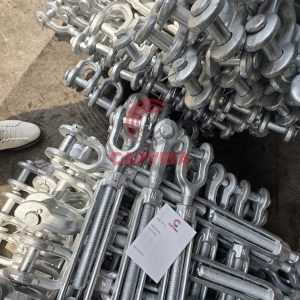

- Hot-dip galvanized body, ends and bolts for long outdoor and marine service life
- Every piece proof-load rated: proof load = 2.5 × WLL, minimum breaking load = 5 × WLL
Material & standard
Surface coating
Safety factor
Turnbuckle – jaw & jaw (2 đầu ma ní)
CAPVINA turnbuckle – our quality promise
- Forged carbon steel, made to ASTM F1145
- Proof load = 2.5 × WLL, minimum breaking load = 5 × WLL
- Hot-dip galvanized body, jaw ends, bolts and nuts
- CAPVINA embossed thick, clear and complete on every piece (CAPVINA® registered trademark) – certifies the CAPVINA brand and quality

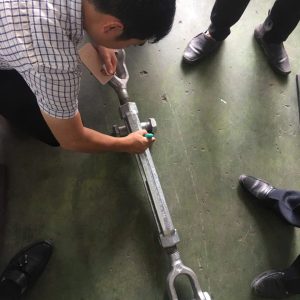

- Magnetic particle inspection (MT) – no cracks allowed; weight exactly as listed in the catalogue
- 6-month quality warranty from the date of delivery, when used within the rated load
- Mill certificate for every batch; NDT (MT / UT) report and third-party inspection by Lloyd’s Register, DNV or Vietnam Register (VR) on customer request
Inspection & certification partners

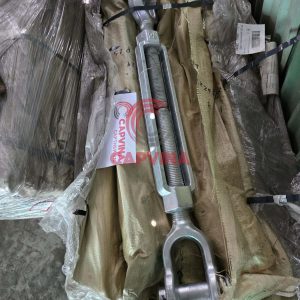

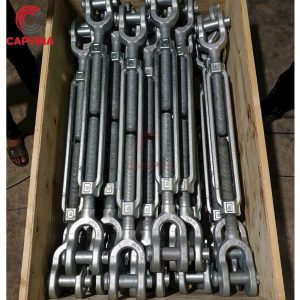

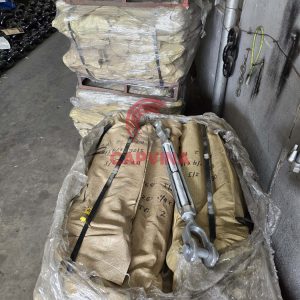

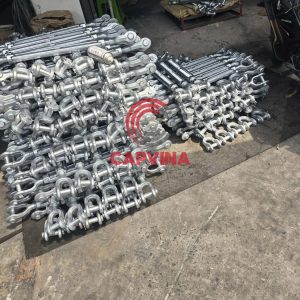

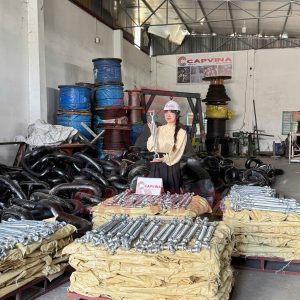

Real photos – CAPVINA turnbuckles

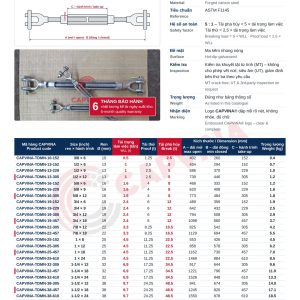

Technical data – turnbuckle, jaw ends both sides
| CAPVINA code | Size (in) | Thread Ø (mm) | Working load limit (t) | Proof load (t) | Min. breaking load (t) | A – open (mm) | B – closed (mm) | C – take-up (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| CAPVINA-TDMN-10-152 | 3/8 × 6 | 10 | 0.5 | 1.25 | 2.5 | 402 | 260 | 152 | 0.4 |
| CAPVINA-TDMN-13-152 | 1/2 × 6 | 13 | 1 | 2.5 | 5 | 434 | 294 | 152 | 0.7 |
| CAPVINA-TDMN-13-229 | 1/2 × 9 | 13 | 1 | 2.5 | 5 | 586 | 370 | 229 | 1.0 |
| CAPVINA-TDMN-13-305 ● | 1/2 × 12 | 13 | 1 | 2.5 | 5 | 739 | 446 | 305 | 1.2 |
| CAPVINA-TDMN-16-152 | 5/8 × 6 | 16 | 1.6 | 4 | 8 | 468 | 332 | 152 | 1.2 |
| CAPVINA-TDMN-16-229 | 5/8 × 9 | 16 | 1.6 | 4 | 8 | 620 | 408 | 229 | 1.6 |
| CAPVINA-TDMN-16-305 ● | 5/8 × 12 | 16 | 1.6 | 4 | 8 | 773 | 484 | 305 | 1.8 |
| CAPVINA-TDMN-19-152 | 3/4 × 6 | 19 | 2.4 | 6 | 12 | 489 | 356 | 152 | 1.9 |
| CAPVINA-TDMN-19-229 | 3/4 × 9 | 19 | 2.4 | 6 | 12 | 642 | 432 | 229 | 2.5 |
| CAPVINA-TDMN-19-305 | 3/4 × 12 | 19 | 2.4 | 6 | 12 | 794 | 508 | 305 | 2.9 |
| CAPVINA-TDMN-19-457 ● | 3/4 × 18 | 19 | 2.4 | 6 | 12 | 1098 | 660 | 457 | 3.7 |
| CAPVINA-TDMN-22-305 | 7/8 × 12 | 22 | 3.3 | 8.25 | 16.5 | 825 | 542 | 305 | 4.2 |
| CAPVINA-TDMN-22-457 ● | 7/8 × 18 | 22 | 3.3 | 8.25 | 16.5 | 1129 | 694 | 457 | 5.5 |
| CAPVINA-TDMN-25-152 | 1 × 6 | 25 | 4.5 | 11.25 | 22.5 | 553 | 426 | 152 | 4.5 |
| CAPVINA-TDMN-25-305 | 1 × 12 | 25 | 4.5 | 11.25 | 22.5 | 858 | 578 | 305 | 6.2 |
| CAPVINA-TDMN-25-457 ● | 1 × 18 | 25 | 4.5 | 11.25 | 22.5 | 1162 | 730 | 457 | 7.0 |
| CAPVINA-TDMN-25-610 | 1 × 24 | 25 | 4.5 | 11.25 | 22.5 | 1469 | 884 | 610 | 8.5 |
| CAPVINA-TDMN-32-305 | 1-1/4 × 12 | 32 | 6.9 | 17.25 | 34.5 | 917 | 644 | 305 | 9.6 |
| CAPVINA-TDMN-32-457 ● | 1-1/4 × 18 | 32 | 6.9 | 17.25 | 34.5 | 1221 | 796 | 457 | 11.9 |
| CAPVINA-TDMN-32-610 | 1-1/4 × 24 | 32 | 6.9 | 17.25 | 34.5 | 1526 | 948 | 610 | 13.3 |
| CAPVINA-TDMN-38-305 | 1-1/2 × 12 | 38 | 9.7 | 24.25 | 48.5 | 941 | 674 | 305 | 14.0 |
| CAPVINA-TDMN-38-457 ● | 1-1/2 × 18 | 38 | 9.7 | 24.25 | 48.5 | 1245 | 826 | 457 | 17.1 |
| CAPVINA-TDMN-38-610 | 1-1/2 × 24 | 38 | 9.7 | 24.25 | 48.5 | 1550 | 978 | 610 | 18.5 |
| CAPVINA-TDMN-44-457 | 1-3/4 × 18 | 44 | 12.7 | 31.75 | 63.5 | 1329 | 916 | 457 | 26.0 |
| CAPVINA-TDMN-44-610 ● | 1-3/4 × 24 | 44 | 12.7 | 31.75 | 63.5 | 1633 | 1068 | 610 | 29.6 |
| CAPVINA-TDMN-51-610 ● | 2 × 24 | 51 | 16.8 | 42 | 84 | 1682 | 1122 | 610 | 42.1 |
| CAPVINA-TDMN-64-610 ● | 2-1/2 × 24 | 64 | 27.2 | 68 | 136 | 1797 | 1250 | 610 | 84.0 |
| CAPVINA-TDMN-70-610 ● | 2-3/4 × 24 | 70 | 34 | 85 | 170 | 1846 | 1306 | 610 | 99.4 |
● = in stock at CAPVINA Vietnam. Code: CAPVINA-TDMN-13–305 = turnbuckle (TD), jaw ends both sides (MN), thread Ø13 mm, take-up 305 mm. Proof load = 2.5 × WLL; minimum breaking load = 5 × WLL; 1 tonne-force = 9.81 kN. Capacities above 34 t available as special designs on request.
Jaw and jaw turnbuckle – frequently asked questions
What is a jaw and jaw turnbuckle?
A jaw and jaw turnbuckle has a forged jaw (clevis) with bolt, nut and cotter pin at both ends, joined by an open body with right- and left-hand threads. Turning the body adjusts the tension of wire ropes, guy wires and lashings.
What is the safety factor of a CAPVINA hot-dip galvanized turnbuckle?
CAPVINA turnbuckles are made to ASTM F1145 with a 5:1 safety factor: minimum breaking load = 5 × working load limit and proof load = 2.5 × WLL. Every batch is magnetic-particle inspected with no cracks allowed.
Which ASTM F1145 turnbuckle sizes are in stock in Vietnam?
CAPVINA stocks 11 sizes: 1/2″×12″, 5/8″×12″, 3/4″×18″, 7/8″×18″, 1″×18″, 1-1/4″×18″, 1-1/2″×18″, 1-3/4″×24″, 2″×24″, 2-1/2″×24″ and 2-3/4″×24″ – working load 1 to 34 tonnes. Other sizes from the 28-size catalogue on request.
How do I choose the right turnbuckle size?
Choose a turnbuckle whose working load limit is equal to or higher than the maximum tension in your rope or stay, then check the open length (A), closed length (B) and take-up (C) against your installation. CAPVINA engineers can help you select the size.
Is there a warranty on CAPVINA turnbuckles?
Yes. Every CAPVINA turnbuckle has a 6-month quality warranty from the date of delivery when used within its rated load and correctly installed.
Tăng đơ 2 đầu ma ní CAPVINA mua ở đâu?
Tăng đơ 2 đầu ma ní mạ kẽm nhúng nóng CAPVINA có sẵn 11 size tại kho CAPVINA Việt Nam, giao toàn quốc và xuất khẩu Lào, Campuchia. Gọi / Zalo 0901 577 139 để nhận báo giá.
Tăng đơ 2 đầu ma ní mạ kẽm nhúng nóng CAPVINA – tóm tắt tiếng Việt
Tăng đơ 2 đầu ma ní (tăng đơ 2 đầu ngàm) CAPVINA làm bằng thép carbon rèn, mạ kẽm nhúng nóng, sản xuất theo tiêu chuẩn ASTM F1145. Hệ số an toàn 5:1 (tải phá hủy = 5 × tải trọng làm việc), tải thử 2,5 lần, kiểm tra từ tính không cho phép nứt, trọng lượng đúng catalog.
Có sẵn 11 size từ 1/2″ đến 2-3/4″, tải trọng làm việc 1 – 34 tấn, logo CAPVINA® dập nổi trên từng sản phẩm, bảo hành chất lượng 6 tháng kể từ ngày xuất kho. Ứng dụng: neo cáp trạm BTS, neo bờ kè, tàu biển, giằng kết cấu, cầu và lan can cáp.
